MMX-6

MMX-6 Series

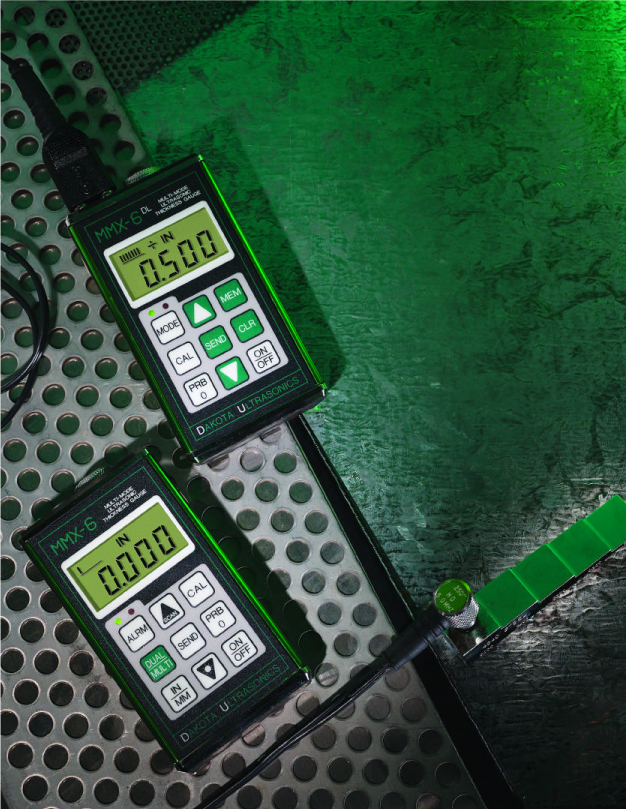

The MMX-6 is a simple to use hand-held Ultrasonic Thickness Gauge with the ability to measure through paint and coatings and eliminate the thickness of the paint or coating. The MMX-6 uses a dual element style transducer. With the single press of a button, the MMX-6 can be switched between pit or flaw mode ( pulse-echo), and through paint/coatings mode (echo-echo) for maximum inspection efficiency. The MMX-6 is equipped with a bundle of features to make your job easier: Alarm mode, high speed scanning, and data send are the main features of the MMX-6. The MMX-6 comes as a complete kit, ready to use, and is backed by Dakota Ultrasonics 5 year limited warranty.

Applications

Corrosion & Pitting Boilers
Tube & Pipe Glass
Tanks Variety of Applications

Specifications

Physical

  • Weight:  10 ounces
  • Size: 2.5 W x 4.75 H x 1.25 D inches (63.5 W 120.7 H x 31.8 D mm)
  • Operating Temperature: -20° to 120° F (-30° to 50° C)
  • Case: Extruded aluminum body / nickel plated aluminum end caps. Resistant to impact and environmentally sealed.

Keypad

  • Sealed membrane that is resistant to both water and petroleum products.
  • Nine tactile-feedback keys.

Transducer

  • Dual element (transmit and receive.)
  • 1 to 10 MHz frequency range.
  • Special high damped transducers available for use with through paint or coating measurements.)
  • Locking quick disconnect LEMO connectors.
  • 4 foot cable.
  • Optional cable lengths up to 100 feet.
  • Custom transducers available for special applications.

Power Source

  • Two 1.5V alkaline or 1.2V NiCad AA cells
  • Typically operates for 200 hours on alkaline and 130 hours on NiCad.
  • Display flashes when battery is low. Unit turns off automatically when battery is too low to operate reliably.
Display

  • Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions.
  • Backlight is selectable: on / off / auto ( illuminates only when taking a measurement ).
  • Measurements displayed in inches, inches/microsecond. millimeters, and mters/second.
  • Bar graph indicates stability of reading.

Measuring

  • Range:
  • Pulse Echo Mode (Pit & Flaw Detection):
  • Measures from 0.025 to 19.999 inches (0.63 to 500 millimeters).
  • Echo Echo Mode (Thru Paint & Coatings):
  • Measures from 0.100 to 1.0 inches (2.54 to 25.4 millimeters).
  • Switch to select English or metric units.
  • Resolution: 0.001 inches (0.01 millimeters)
  • Velocity Range: .0492 to .3937 in/microsec (1250 to 10,000 meters/sec).
  • Built in: Stainless steel reference disk for probe zeroing.
  • Four readings per second for single point measure ments or 16 per second in scan mode — captures the minimum thickness.
  • Single and Two point calibration option included.
Features

  • Multi-Mode: Toggle between Pit/Flaw detection (Pulse Echo Mode), and through Paint/Coatings (Echo-Echo Mode) with the single press of a button.
  • Alarm Mode: Enter a minimum acceptable thickness value.
  • If measurement falls below minimum, red led will illuminate and sound beeper. If measurement is above minimum value, green led will illuminate.
  • Data Ouput: RS232 output sends thickness readings to a computer  or other external storage device

Certification

  • Factory calibration traceable to national standards.

Warranty

  • 5 year limited
